Benefits
· Ultra-Pure Design
o PVDF/PFA Wetted Surfaces
· Reliable Heating
o Heats harsh chemicals
o Max 200C Heating capability
o Fully Tested
· Fast Response
o Low Watt Density; ≤ 4 watts/in2
· Compact Design
o Max power in smallest footprint

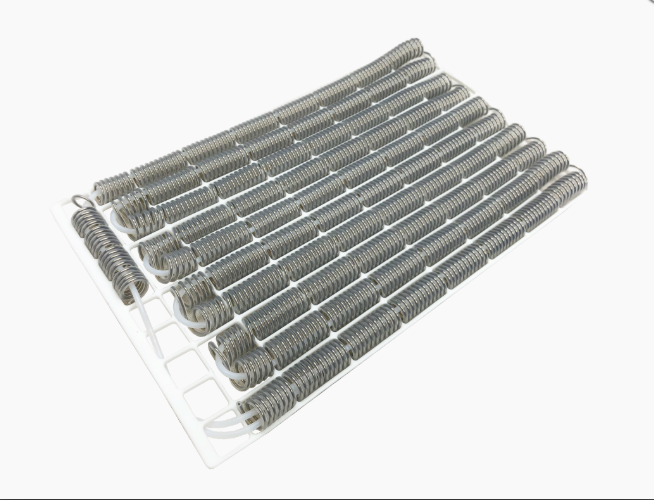

o Grid Heaters – 3/4″ Height
o Frame Heaters – 1-1/2″ Height
· Flexible Solutions
o Heaters designed to be easily integrated into most process tanks. Our customers provide us with their specifications and tank size and we can build a heater for them.
· No N2 Purge Required
Features
· Heater: Patented Heateflex? Coil
· Wetted Surface: All PFA
· Sizes: 1.0kW to 30kW (Dependent on Customer Voltage)
· Voltages: 120VAC to 480VAC 1 or 3ph (Dependent on Wattage)
· Temperature: 200°C (392°F)
· Temperature Accuracy: ±0.1°C (Contingent on Customer’s Facilitation)
· Efficiency: >99%
· MTBF: >10.29 years
